10A DC 5V 0.45W Power Control Relay SPST PCB Flux Resistance RJ-SS-105DM1

Product Categories
Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now

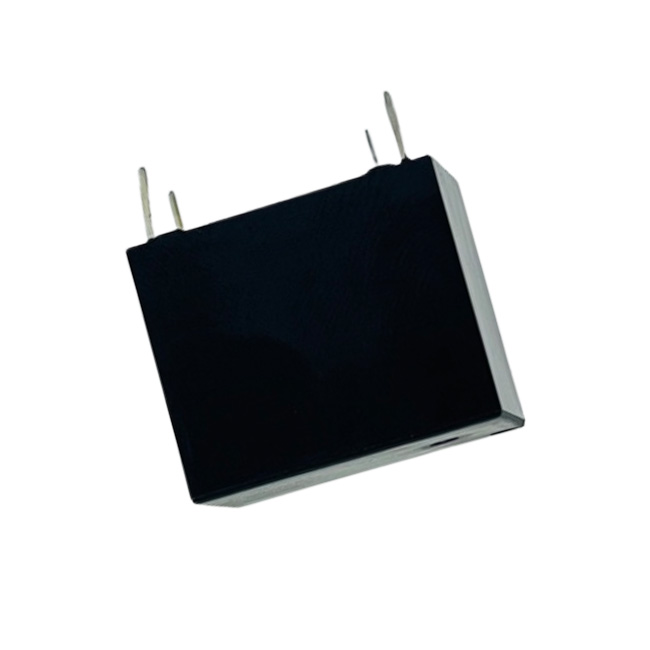

10A DC 5V 0.45W Power Control Relay SPST PCB Flux Resistance RJ-SS-105DM1

Brand Name : WRG

Model Number : RJ-SS-105DM1

Certification : TUV/UL/CQC

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500k per month

Delivery Time : 5-8days

Packaging Details : standard or customization

Keyword : 12V SPST Relay

Coil input voltage : 5VDC

Contact form : 1 Form A

Contact rating : 10A 250VAC,1/3HP 240VAC,5A 30VDC,10A 277VAC

Dimension LxWxH(mm) : 18.2x10.2x15.5

Weight(g) : 6g

Mounting : PCB

Features : small size with 18.2*10.2*15.5mm

Contact Now

10A DC 5V 0.45W Power Control Relay SPST PCB Flux Resistance RJ-SS-105DM1

12V SPST Relay Description:
RJ series power relay is a type of miniature package with a universal terminal footprint, a lightweight general-purpose relay. High sensitivity,
low coil power with 200mW minimum.4000V for dielectric withstand voltage between coil and contact, also can option anti-explosion type.

12V SPST Relay Features:
1. small size with 18.2*10.2*15.5mm
2. lightweight 6g
3. rated current 10A
4. 450mW
5. class A for insulation grade

12V SPST Relay Applications:
1. office machine: copy machine, shredder...
2. industrial equipment: industry temperature controllers, robots...

12V SPST Relay Specification:

General data:
Rated withstand impulse voltage coil contact 4kV AC/1min
between contact 1kV AC/1min
Surge voltage 6kV AC
Insulation resistance 1000MΩ(500VDC)
Vibration Fault 10-55Hz(amplitude 1.5mm)
Endurance 10-55Hz(amplitude 1.5mm)
Shock Fault 98m/S2 ,Endruance 980 m/s2
Operating temperature -40 ~ 105℃(no condensation)
Operating humidity 20 ~ 85％
Dimension LxWxH(mm) 18.2x10.2x15.5
Enclosure type Flux-resistance, sealed
Mounting PCB
Weight(g) 6
Certifications cULus:E345228/TUV:R50222701/CQC:CQC10002052739

For further datasheets, please click the link below or contact us.
RJ Series.pdf
