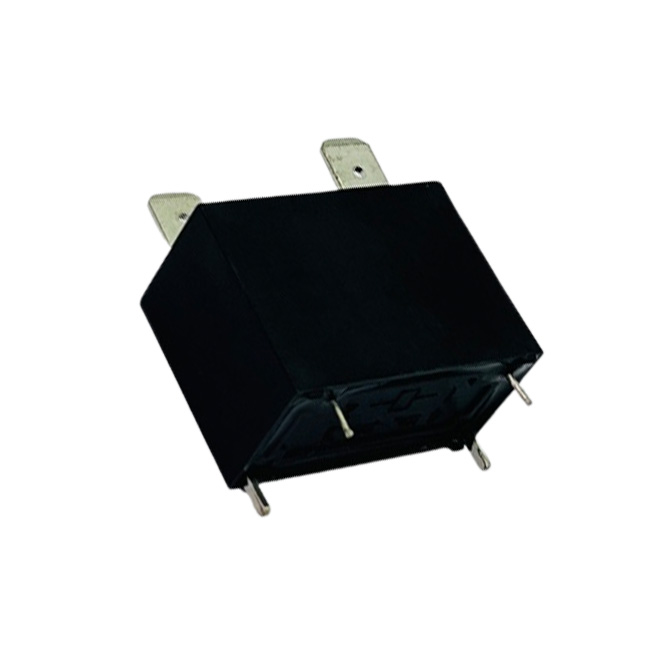

50A 60A 80A 12 Volt SPDT Relay Class F Dust Proof Cover BM94-C For Electric Seat

Brand Name : NBC

Model Number : BM94-C

Certification : TUV/CQC/UL

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500k per month

Delivery Time : 4weeks

Packaging Details : standard or customization

Keyword : 12V 50A Relay

Coil input voltage : DC12V

Contact material : Ag alloy

Contact number : 1 Form C

Contact rating : NO.:80A/14VDC;NC.: 60A/14VDC

Dimension LxWxH(mm) : 25.8*25.8*24

Application : Industry control

Weight(g) : approx.45

Contact Now

50A 60A 80A 12 Volt SPDT Relay Class F Dust Proof Cover BM94-C For Electric Seat

12V 50A Relay Features:

1. coil power consumption 1.8W or 2.2W for options

2. Class F for coil insulation grade

3. environmental-friendly

4. rated current max.80A

5. SPST or SPDT

6. various mounting terminals available

12V 50A Relay Introduce:

A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.

12V 50A Relay Technical Rating:

Insulation Resistance:	100MΩ
Dielectric Strength(Between coil&contact):	500VAC
Operate Time (Max.):	10ms
Release Time (Max.):	7ms
Ambient Temperature:	-40℃ ~105℃
Terminal Type:	THT & Plug-In
